Pulsecho’s SmartRad is a radiation detector with a graphic LCD & menu driven operation. The graphic LCD along with its backlight enables SmartRad to show a digital reading along with an analogue bar which shows sudden variations. SmartRad also shows the next calibration date.

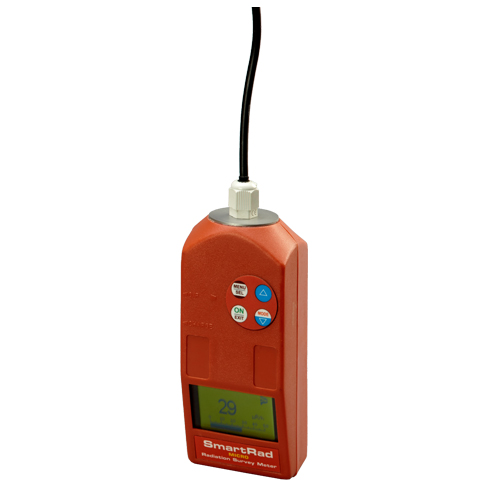

SmartRad micro is a hand held contamination monitor that can detect Alpha, Beta, Gamma and X-Ray. It is an extremely convenient, hand held, portable instrument used for detecting contamination on surfaces such as walls, tables, floors etc. It has a graphical display which can also show counts per second for easy contamination monitoring.
| Detector | |
|---|---|
| Application Areas |
Radiation contamination detection:
|
| Radiation Detected | Gamma, X-Ray, Alpha & Beta |
| Detector | Externally mounted halogen quenched pancake GM detector with openable Alpha/Beta shield LND 7312 Pancake 1.75” Dia. 0.5” Depth |
| Beta Detection Window | 1.5 mg/cm2 ~ 2” Diameter and 0.5” depth |
| Detector Housing | Aluminum Case: 25D X 70W X 130L mm with SS shield |
| Measuring Range |
Rate: 10 µR/h to 100 mR/h & 0 to 6000 CPS 0.01 µSv/h to 999 µSv/h & 0 to 6000 CPS Dose: 0.01 mR to 999 mR (in up to 100 mR/h field) Dose: 0.01 µSv to 999 µSv |
| Energy Response | 10 KeV to 2 MeV (See Graph Below) |
| Accuracy | ±15% when calibrated with Cs 137 |
| Operating Temp | 0°C to 50°C |
| EHT | 500V (nominal) Regulated |
| Battery | 4 penlite dry cells |
| Dimensions (in mm) | 140 x 65 x 50 + External Probe |
| Weight (with battery) | 500 grams with external probe |

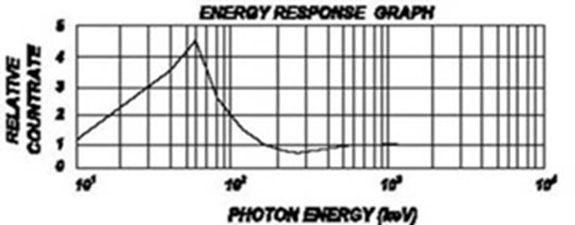

SmartRad Micro Energy Response

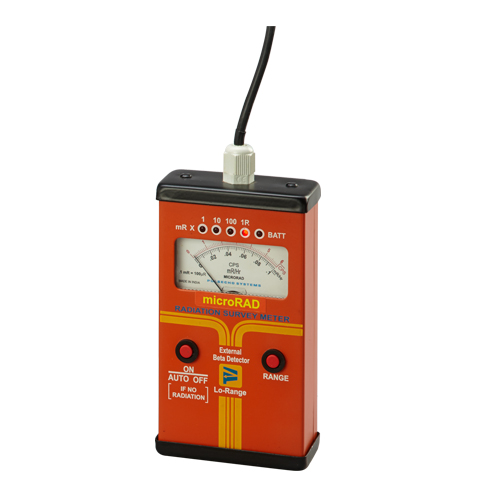

microRAD Is a portable, battery operated Contamination Detector. It provides a fast and accurate measure of Alpha, Beta and GAMMA RADIATION. It has a very sensitive low range Pancake Detector which connects to the main unit with a one meter cable. For Alpha and Beta Detection the pancake window must be exposed.
| Detector | ||
|---|---|---|
| Application Areas |
Radiation contamination detection:
|
|
| Radiation Detected | Gamma, X-Ray, Alpha & Beta | |
| Detector | Externally mounted halogen quenched pancake GM detector with openable Alpha/Beta shield | |
| Beta Detection Window | 1.5 mg/cm2 ~ 2” Diameter and 0.5” depth | |
| Detector Housing | Aluminum Case: 25D X 70W X 130L mm with SS shield | |
| Display | 50 mm Analog Meter | |
| Audio | Piezo Buzzer | |
| Measuring Ranges (1 uSv/h = 0.1 mR/h) (Select One) |
Roentgens & Count Per Second (CPS) | Sievert & Count Per Second (CPS) |
|
0 - 100 uR/h (0 – 6 CPS) 0 – 1 mR/h (0 – 60 CPS) 0 – 10 mR/h (0 – 600 CPS) 0 – 100 mR/h (0 – 6000 CPS) |
0 – 1 uSv/h 0 - 10 uSv/h 0 – 100 uSv/h 0 - 1 mSv/h |
|
| Energy Response | 10 KeV to 2 MeV (See Graph Below) | |
| Accuracy | ±15% when calibrated with Cs 137 | |
| Operating Temp | 0°C to 50°C | |
| EHT | 500V (nominal) Regulated | |
| Battery | 5 penlite dry cells (~80 hours intermittent use) | |
| Dimensions (in mm) | 145 x 80 x 40 + External Probe | |
| Weight (with battery) | 650 grams with external probe | |
microRad Energy Response
